IFC-file: | TestBldg_2_d8c_VisioExport2_Melbourne_Feb-00.ifc |

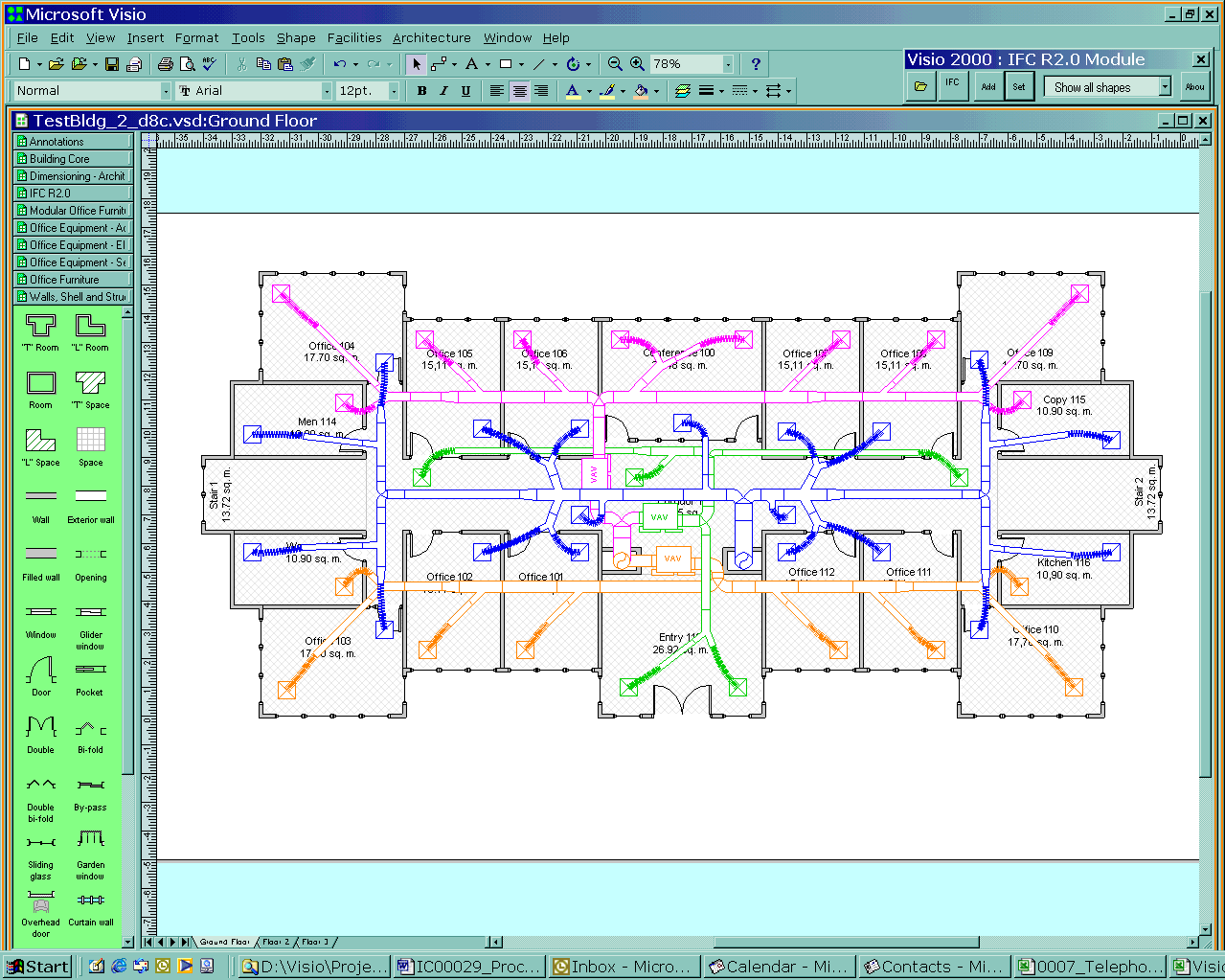

GIF-image: | TestBldg_2_d8c_VisioExport2_Melbourne_Feb-00.gif |
Table of contents:
Description: | BLIS Test Building - Ground Floor |
Originating System: | Visio 2000 |
Preprocessor Version: | ST-DEVELOPER v7 |
Time Stamp: | 2000-04-14T18:59:07-07:00 |
Author: | Richard See |
Organization: | Microsoft Corporation - Visio Division |
Authorisation: | BLIS Group |
FileFormat: | IFC |
Implementation Level: | 2;1 |
Shema: | IFC20_LONGFORM |
Model size: | 8873 objects |
Model scope: | 54 of 260 object types in IFC R2.0 used (21%) |
IfcActorRole (1) | IfcAddress (1) | IfcApplication (1) | ||
IfcArbitraryProfileDef (21) | IfcAttDrivenExtrudedSegment (192) | IfcAttDrivenExtrudedSolid (192) | IfcAxis2Placement2D (171) | |
IfcAxis2Placement3D (596) | IfcBoundingBox (192) | IfcBuilding (1) | IfcBuildingStorey (1) | |
IfcCartesianPoint (1479) | IfcDirection (460) | IfcDoor (19) | IfcExtensionPropertySet (172) | |
IfcFlowEquipment (3) | IfcFlowFitting (45) | IfcFlowSegment (85) | IfcFlowTerminal (39) | |
IfcGeometricRepresentationContext (1) | IfcLocalPlacement (403) | IfcMaterial (1) | IfcMaterialLayer (1) | |
IfcMaterialLayerSet (1) | IfcMaterialLayerSetUsage (67) | IfcObjectReference (104) | IfcOpeningElement (104) | |
IfcOrganization (2) | IfcOwnerHistory (1) | IfcPerson (1) | IfcPersonAndOrganization (1) | |
IfcPolyLoop (104) | IfcPolyline (21) | IfcProductDefinitionShape (296) | IfcProject (1) | |
IfcPropertySet (352) | IfcRectangleProfileDef (171) | IfcRelAssignsProperties (524) | IfcRelConnectsPathElements (71) | |
IfcRelContains (26) | IfcRelFillsElement (104) | IfcRelGroups (8) | IfcRelSeparatesSpaces (67) | |
IfcRelVoidsElement (104) | IfcShapeRepresentation (488) | IfcSiUnit (4) | IfcSimpleProperty (1887) | |
IfcSite (1) | IfcSpace (21) | IfcSpaceBoundary (104) | IfcSystem (8) | |
IfcUnitAssignment (1) | IfcWall (67) | IfcWindow (85) | ||
IfcDoor | Instances | 19 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcDoor does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types |
+ SingleSwing (18) + DoubleSwing (1) |
|||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcOpeningElement | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcDoor does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties |
+ Pset_HardwareGroup (19) + Pset_DoorCommon (19) + Pset_DoorPanelSwinging (19) + Pset_DoorLiningCommon (19) |
|||||||||||||||||||||||||||||||||||||||
Part of groups | + Doors (19) | |||||||||||||||||||||||||||||||||||||||
Contained by |
+ BuildingStoreyContainer|Contained (19) + SpaceContainer|Referenced (37) |
|||||||||||||||||||||||||||||||||||||||
Relationships | + IfcRelFillsElement | |||||||||||||||||||||||||||||||||||||||
IfcFlowEquipment | Instances | 3 | ||||||||||||||||||||||||||||||||||||||
Pre defined types |
- AirFilter - AirHandler - Boiler - Chiller - Coil - Compressor - Convector - CoolingTower - Fan - HeatExchanger + PackagedACUnit (3) - Pump - TubeBundle - UnitHeater - Elevator - Escalator - Motor - UserDefined - NotDefined |
|||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: Not defined | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcFlowEquipment does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties | + Pset_visHvacProperties (3) | |||||||||||||||||||||||||||||||||||||||
Part of groups |
+ HVAC_FrontSupply (1) + HVAC_MidSupply (1) + HVAC_BackSupply (1) |
|||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (3) | |||||||||||||||||||||||||||||||||||||||
Relationships | No relationships. | |||||||||||||||||||||||||||||||||||||||
IfcFlowFitting | Instances | 45 | ||||||||||||||||||||||||||||||||||||||
Pre defined types |
+ DuctFitting (45) - PipeFitting - UserDefined - NotDefined |
|||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: Not defined | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcFlowFitting does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties | + Pset_visHvacProperties (45) | |||||||||||||||||||||||||||||||||||||||
Part of groups |
+ HVAC_FrontSupply (9) + HVAC_BackSupply (12) + HVAC_MidSupply (2) + HVAC_Return (22) |
|||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (45) | |||||||||||||||||||||||||||||||||||||||
Relationships | No relationships. | |||||||||||||||||||||||||||||||||||||||
IfcFlowSegment | Instances | 85 | ||||||||||||||||||||||||||||||||||||||
Pre defined types |
+ DuctSegment (85) - PipeSegment - GutterSegment - UserDefined - NotDefined |
|||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: Not defined | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcFlowSegment does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties | + Pset_visHvacProperties (85) | |||||||||||||||||||||||||||||||||||||||
Part of groups |
+ HVAC_FrontSupply (24) + HVAC_BackSupply (26) + HVAC_MidSupply (4) + HVAC_Return (32) |
|||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (85) | |||||||||||||||||||||||||||||||||||||||
Relationships | No relationships. | |||||||||||||||||||||||||||||||||||||||
IfcFlowTerminal | Instances | 39 | ||||||||||||||||||||||||||||||||||||||
Pre defined types |
+ AirTerminal (39) - RoofDrain - Scupper - UserDefined - NotDefined |
|||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: Not defined | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcFlowTerminal does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties |
+ Pset_AirTerminal (39) + Pset_visHvacProperties (39) |
|||||||||||||||||||||||||||||||||||||||
Part of groups |
+ HVAC_FrontSupply (8) + HVAC_MidSupply (2) + HVAC_BackSupply (10) + HVAC_Return (19) |
|||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (39) | |||||||||||||||||||||||||||||||||||||||
Relationships | No relationships. | |||||||||||||||||||||||||||||||||||||||
IfcWall | Instances | 67 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcWall does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcBuildingStorey | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes |
+ calcWallArea + calcWallVolume |
|||||||||||||||||||||||||||||||||||||||
Properties | + Pset_WallCommon (67) | |||||||||||||||||||||||||||||||||||||||
Part of groups | + Building Envelope (67) | |||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (67) | |||||||||||||||||||||||||||||||||||||||
Relationships |
+ IfcRelConnectsPathElements + IfcRelSeparatesSpaces |
|||||||||||||||||||||||||||||||||||||||
IfcWindow | Instances | 85 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcWindow does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcOpeningElement | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcWindow does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties |
+ Pset_HardwareGroup (85) + Pset_WindowCommon (85) |
|||||||||||||||||||||||||||||||||||||||
Part of groups | + Windows (85) | |||||||||||||||||||||||||||||||||||||||
Contained by |
+ BuildingStoreyContainer|Contained (85) + SpaceContainer|Referenced (101) |
|||||||||||||||||||||||||||||||||||||||
Relationships | + IfcRelFillsElement |
IfcSpace | Instances | 21 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcSpace does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcBuildingStorey | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes |
+ calcTotalPerimeter + calcTotalArea + calcTotalVolume + calcAverageHeight - calcAverageGrossHeight - calcAverageClearHeight - calcElevationWithFlooring |
|||||||||||||||||||||||||||||||||||||||
Properties | No attached property definitions. | |||||||||||||||||||||||||||||||||||||||
Part of groups | + Spaces (21) | |||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (21) | |||||||||||||||||||||||||||||||||||||||
Relationships | + IfcSpaceBoundary |
IfcSpaceBoundary | Instances | 104 | |||||||||||||||||
Pre defined types | IfcSpaceBoundary does not have any pre defined types. | ||||||||||||||||||
User defined types | None defined | ||||||||||||||||||
Common concepts |
- Classification - Document references |
||||||||||||||||||
Placement | + Placement relative to: IfcBuildingStorey | ||||||||||||||||||
Representations |
|
||||||||||||||||||
calc -Attributes | - calcBoundarySurfaceArea | ||||||||||||||||||
Properties | No attached property definitions. | ||||||||||||||||||
Part of groups | Not a member of any group. | ||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (104) | ||||||||||||||||||
Relationships | No relationships. |
Pset_AirTerminal | Definition source | IAI (pre defined PropertySet) |
Instances | 39 | |
Used by |
+ IfcFlowTerminal (39) |
|
Properties |
- IfcEnumeratedProperty / AirFlowType - IfcSimplePropertyWithUnit / MaximumFlowrate - IfcSimplePropertyWithUnit / PressureLoss - IfcSimpleProperty / Throw - IfcObjectReference / SoundLevel - IfcSimpleProperty / ADPI - IfcEnumeratedProperty / FinishType - IfcSimpleProperty / FinishColor - IfcEnumeratedProperty / MountingType - IfcEnumeratedProperty / FaceType - IfcEnumeratedProperty / CoreType - IfcSimpleProperty / CoreSetHorizontal - IfcSimpleProperty / CoreSetVertical - IfcObjectReference / IntegralDamper - IfcSimpleProperty / IntegralControl + IfcSimpleProperty / AirFlowType (39) - EXTENSION ! |
|
Pset_DoorCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 19 | |
Used by |
+ IfcDoor (19) |
|
Properties |
+ IfcSimpleProperty / Reference (19) - IfcSimpleProperty / Description - IfcSimpleProperty / NominalHeight - IfcSimpleProperty / NominalWidth + IfcObjectReference / HardwareGroup (19) - IfcObjectReference / Shading + IfcSimpleProperty / IsExterior (19) + IfcSimpleProperty / ParameterTakesPrecedence (19) + IfcSimpleProperty / ArbitraryShapeRepresentation (19) - IfcSimpleProperty / OrientationToExterior - IfcSimplePropertyWithUnit / Infiltration - IfcSimplePropertyWithUnit / ThermalTransmittanceCoefficient + IfcSimpleProperty / FireRating (19) - IfcSimpleProperty / AcousticRating - IfcSimpleProperty / SecurityRating |
|
Pset_DoorLiningCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 19 | |
Used by |
+ IfcDoor (19) |
|
Properties |
+ IfcSimpleProperty / LiningDepth (19) + IfcSimpleProperty / LiningThickness (19) - IfcSimpleProperty / ThresholdDepth - IfcSimpleProperty / ThresholdThickness |
|
Pset_DoorPanelSwinging | Definition source | IAI (pre defined PropertySet) |
Instances | 19 | |
Used by |
+ IfcDoor (19) |
|
Properties |
- IfcObjectReference / CommonDoorPanelProperties + IfcSimpleProperty / LeftNotRightSwing (19) - IfcSimpleProperty / SwingStartAngle - IfcSimpleProperty / IncludedSwingAngle |
|
Pset_HardwareGroup | Definition source | IAI (pre defined PropertySet) |
Instances | 104 | |
Used by |
+ IfcDoor (19) + IfcWindow (85) |
|
Properties |
+ IfcSimpleProperty / Reference (104) - IfcSimpleProperty / Description - IfcObjectReference / Manufacturer - IfcSimpleProperty / ModelLabel - IfcSimpleProperty / ModelDescription - IfcSimpleProperty / Finish |
|
Pset_WallCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 67 | |
Used by |
+ IfcWall (67) |
|
Properties |
+ IfcSimpleProperty / Reference (67) - IfcSimpleProperty / Description - IfcSimpleProperty / ExtendToStructure + IfcSimpleProperty / ExternalWall (67) + IfcSimpleProperty / FireRating (67) - IfcSimpleProperty / ThermalRating - IfcSimpleProperty / AcousticRating |
|
Pset_WindowCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 85 | |
Used by |
+ IfcWindow (85) |
|
Properties |
+ IfcSimpleProperty / Reference (85) - IfcSimpleProperty / Description - IfcSimpleProperty / NominalHeight - IfcSimpleProperty / NominalWidth + IfcObjectReference / HardwareGroup (85) - IfcObjectReference / Shading + IfcSimpleProperty / IsExterior (85) + IfcSimpleProperty / ParameterTakesPrecedence (85) + IfcSimpleProperty / ArbitraryShapeRepresentation (85) - IfcSimpleProperty / OrientationToExterior - IfcSimplePropertyWithUnit / Infiltration - IfcSimplePropertyWithUnit / ThermalTransmittanceCoefficient + IfcSimpleProperty / FireRating (85) - IfcSimpleProperty / AcousticRating - IfcSimpleProperty / SecurityRating |
|
Pset_visHvacProperties | Definition source | Visio |
Instances | 172 | |
Used by |
+ IfcFlowSegment (85) + IfcFlowEquipment (3) + IfcFlowFitting (45) + IfcFlowTerminal (39) |
|
Properties |
+ IfcSimpleProperty / SegmentType (83) + IfcSimpleProperty / ShapeType (123) + IfcSimpleProperty / EndType (44) + IfcSimpleProperty / Width (130) + IfcSimpleProperty / Depth (130) + IfcSimpleProperty / Length (169) + IfcSimpleProperty / InputDuctWidth (3) + IfcSimpleProperty / InputDuctDepth (3) + IfcSimpleProperty / OutputDuctWidth (3) + IfcSimpleProperty / OutputDuctDepth (3) + IfcSimpleProperty / FittingType (2) + IfcSimpleProperty / Angle (2) + IfcSimpleProperty / DuctToRadiusRatio (2) + IfcSimpleProperty / JunctionType (35) + IfcSimpleProperty / BranchWidth (35) + IfcSimpleProperty / BranchDepth (35) + IfcSimpleProperty / BranchLength (35) + IfcSimpleProperty / Branch2Width (19) + IfcSimpleProperty / Branch2Depth (19) + IfcSimpleProperty / Branch2Length (19) + IfcSimpleProperty / Diameter (39) + IfcSimpleProperty / TransitionType (10) + IfcSimpleProperty / EndWidth (10) + IfcSimpleProperty / EndDepth (10) + IfcSimpleProperty / BranchShapeType (3) |
