IFC-file: | TestBldg_2_d8c_VisioExport1_Melbourne_Feb-00.ifc |

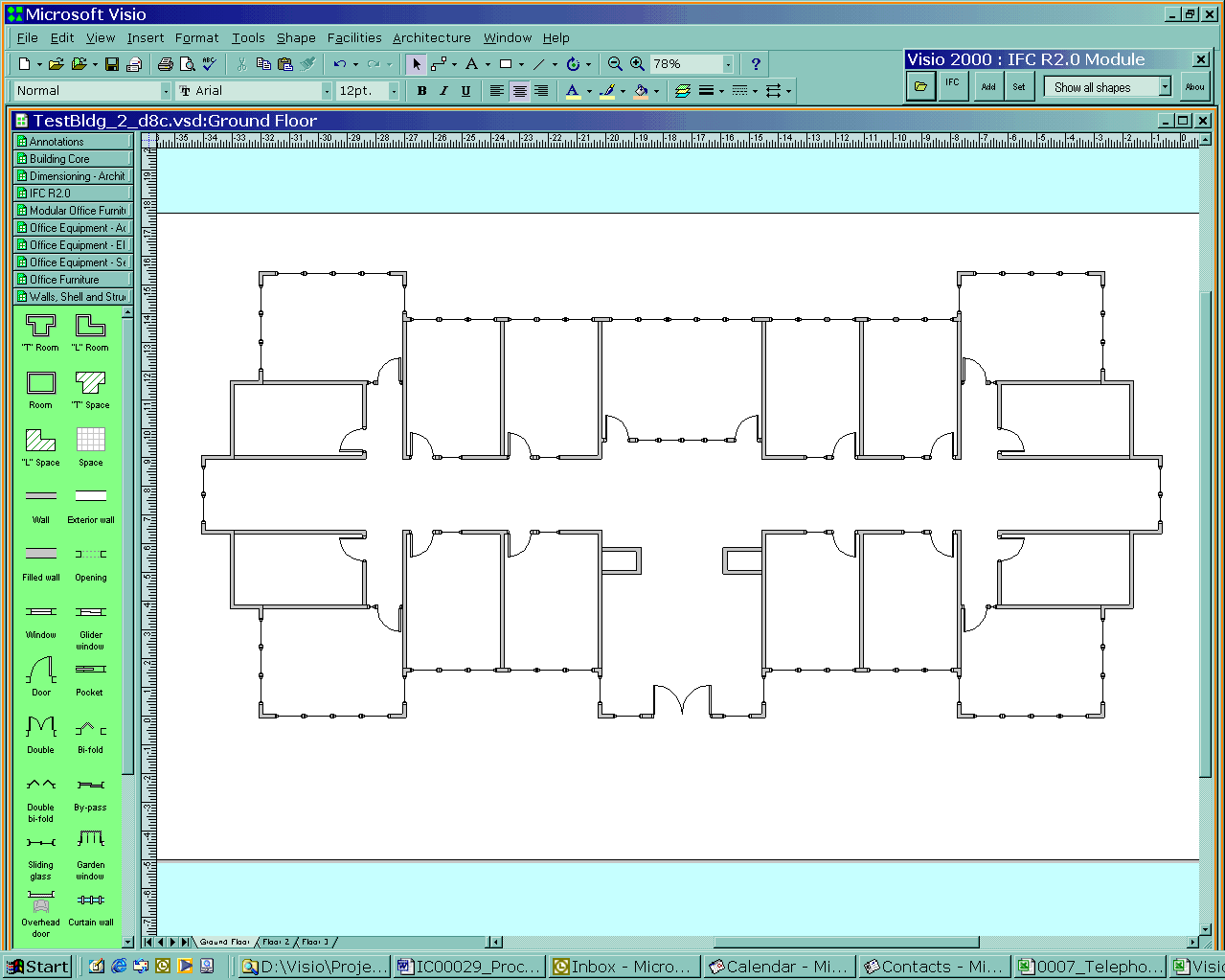

GIF-image: | TestBldg_2_d8c_VisioExport1_Melbourne_Feb-00.gif |
Table of contents:
Description: | BLIS Test Building - Ground Floor |
Originating System: | Visio 2000 |
Preprocessor Version: | ST-DEVELOPER v7 |
Time Stamp: | 2000-03-23T12:52:21-08:00 |
Author: | Richard See |
Organization: | Microsoft Corporation - Visio Division |
Authorisation: | BLIS Group |
FileFormat: | IFC |
Implementation Level: | 2;1 |
Shema: | IFC20_LONGFORM |
Model size: | 5536 objects |
Model scope: | 40 of 260 object types in IFC R2.0 used (15%) |
IfcActorRole (1) | IfcAddress (1) | IfcApplication (1) | ||
IfcAttDrivenExtrudedSegment (171) | IfcAttDrivenExtrudedSolid (171) | IfcAxis2Placement2D (171) | IfcAxis2Placement3D (450) | |
IfcBoundingBox (171) | IfcBuilding (1) | IfcBuildingStorey (1) | IfcCartesianPoint (792) | |
IfcDirection (460) | IfcDoor (19) | IfcGeometricRepresentationContext (1) | IfcLocalPlacement (278) | |
IfcMaterial (1) | IfcMaterialLayer (1) | IfcMaterialLayerSet (1) | IfcMaterialLayerSetUsage (67) | |
IfcObjectReference (104) | IfcOpeningElement (104) | IfcOrganization (2) | IfcOwnerHistory (1) | |
IfcPerson (1) | IfcPersonAndOrganization (1) | IfcProductDefinitionShape (171) | IfcProject (1) | |
IfcPropertySet (313) | IfcRectangleProfileDef (171) | IfcRelAssignsProperties (313) | IfcRelContains (5) | |
IfcRelFillsElement (104) | IfcRelVoidsElement (104) | IfcShapeRepresentation (342) | IfcSiUnit (4) | |
IfcSimpleProperty (882) | IfcSite (1) | IfcUnitAssignment (1) | IfcWall (67) | |
IfcWindow (85) | ||||
IfcDoor | Instances | 19 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcDoor does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types |
+ SingleSwing (18) + DoubleSwing (1) |
|||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcOpeningElement | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcDoor does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties |
+ Pset_HardwareGroup (19) + Pset_DoorCommon (19) + Pset_DoorPanelSwinging (19) + Pset_DoorLiningCommon (19) |
|||||||||||||||||||||||||||||||||||||||
Part of groups | Not a member of any group. | |||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (19) | |||||||||||||||||||||||||||||||||||||||
Relationships | + IfcRelFillsElement | |||||||||||||||||||||||||||||||||||||||
IfcWall | Instances | 67 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcWall does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcBuildingStorey | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes |
+ calcWallArea + calcWallVolume |
|||||||||||||||||||||||||||||||||||||||
Properties | + Pset_WallCommon (67) | |||||||||||||||||||||||||||||||||||||||
Part of groups | Not a member of any group. | |||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (67) | |||||||||||||||||||||||||||||||||||||||
Relationships | No relationships. | |||||||||||||||||||||||||||||||||||||||
IfcWindow | Instances | 85 | ||||||||||||||||||||||||||||||||||||||
Pre defined types | IfcWindow does not have any pre defined types. | |||||||||||||||||||||||||||||||||||||||
User defined types | None defined | |||||||||||||||||||||||||||||||||||||||
Common concepts |
- Classification - Document references |
|||||||||||||||||||||||||||||||||||||||
Placement | + Placement relative to: IfcOpeningElement | |||||||||||||||||||||||||||||||||||||||
Representations |
|
|||||||||||||||||||||||||||||||||||||||
calc -Attributes | IfcWindow does not have any calc -Attributes | |||||||||||||||||||||||||||||||||||||||
Properties |
+ Pset_HardwareGroup (85) + Pset_WindowCommon (85) |
|||||||||||||||||||||||||||||||||||||||
Part of groups | Not a member of any group. | |||||||||||||||||||||||||||||||||||||||
Contained by | + BuildingStoreyContainer|Contained (85) | |||||||||||||||||||||||||||||||||||||||
Relationships | + IfcRelFillsElement |
Pset_DoorCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 19 | |
Used by |
+ IfcDoor (19) |
|
Properties |
+ IfcSimpleProperty / Reference (19) - IfcSimpleProperty / Description - IfcSimpleProperty / NominalHeight - IfcSimpleProperty / NominalWidth + IfcObjectReference / HardwareGroup (19) - IfcObjectReference / Shading + IfcSimpleProperty / IsExterior (19) + IfcSimpleProperty / ParameterTakesPrecedence (19) + IfcSimpleProperty / ArbitraryShapeRepresentation (19) - IfcSimpleProperty / OrientationToExterior - IfcSimplePropertyWithUnit / Infiltration - IfcSimplePropertyWithUnit / ThermalTransmittanceCoefficient + IfcSimpleProperty / FireRating (19) - IfcSimpleProperty / AcousticRating - IfcSimpleProperty / SecurityRating |
|
Pset_DoorLiningCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 19 | |
Used by |
+ IfcDoor (19) |
|
Properties |
+ IfcSimpleProperty / LiningDepth (19) + IfcSimpleProperty / LiningThickness (19) - IfcSimpleProperty / ThresholdDepth - IfcSimpleProperty / ThresholdThickness |
|
Pset_DoorPanelSwinging | Definition source | IAI (pre defined PropertySet) |
Instances | 19 | |
Used by |
+ IfcDoor (19) |
|
Properties |
- IfcObjectReference / CommonDoorPanelProperties + IfcSimpleProperty / LeftNotRightSwing (19) - IfcSimpleProperty / SwingStartAngle - IfcSimpleProperty / IncludedSwingAngle |
|
Pset_HardwareGroup | Definition source | IAI (pre defined PropertySet) |
Instances | 104 | |
Used by |
+ IfcDoor (19) + IfcWindow (85) |
|
Properties |
+ IfcSimpleProperty / Reference (104) - IfcSimpleProperty / Description - IfcObjectReference / Manufacturer - IfcSimpleProperty / ModelLabel - IfcSimpleProperty / ModelDescription - IfcSimpleProperty / Finish |
|
Pset_WallCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 67 | |
Used by |
+ IfcWall (67) |
|
Properties |
+ IfcSimpleProperty / Reference (67) - IfcSimpleProperty / Description - IfcSimpleProperty / ExtendToStructure + IfcSimpleProperty / ExternalWall (67) + IfcSimpleProperty / FireRating (67) - IfcSimpleProperty / ThermalRating - IfcSimpleProperty / AcousticRating |
|
Pset_WindowCommon | Definition source | IAI (pre defined PropertySet) |
Instances | 85 | |
Used by |
+ IfcWindow (85) |
|
Properties |
+ IfcSimpleProperty / Reference (85) - IfcSimpleProperty / Description - IfcSimpleProperty / NominalHeight - IfcSimpleProperty / NominalWidth + IfcObjectReference / HardwareGroup (85) - IfcObjectReference / Shading + IfcSimpleProperty / IsExterior (85) + IfcSimpleProperty / ParameterTakesPrecedence (85) + IfcSimpleProperty / ArbitraryShapeRepresentation (85) - IfcSimpleProperty / OrientationToExterior - IfcSimplePropertyWithUnit / Infiltration - IfcSimplePropertyWithUnit / ThermalTransmittanceCoefficient + IfcSimpleProperty / FireRating (85) - IfcSimpleProperty / AcousticRating - IfcSimpleProperty / SecurityRating |
